The new V9 Comfort Sleeper is now easier than ever to open, and with its new seat and back cushion design, you'll feel like your sitting in the sofa rather than on it. Just as important, the standard Performance Foam mattress and the upgrade Cooling Gel mattress now have a new high tech foam with carbon fiber infused into it, making it stronger, lighter, and more supportive than before. What has always been the most comfortable sleeper sofa available is now even better.

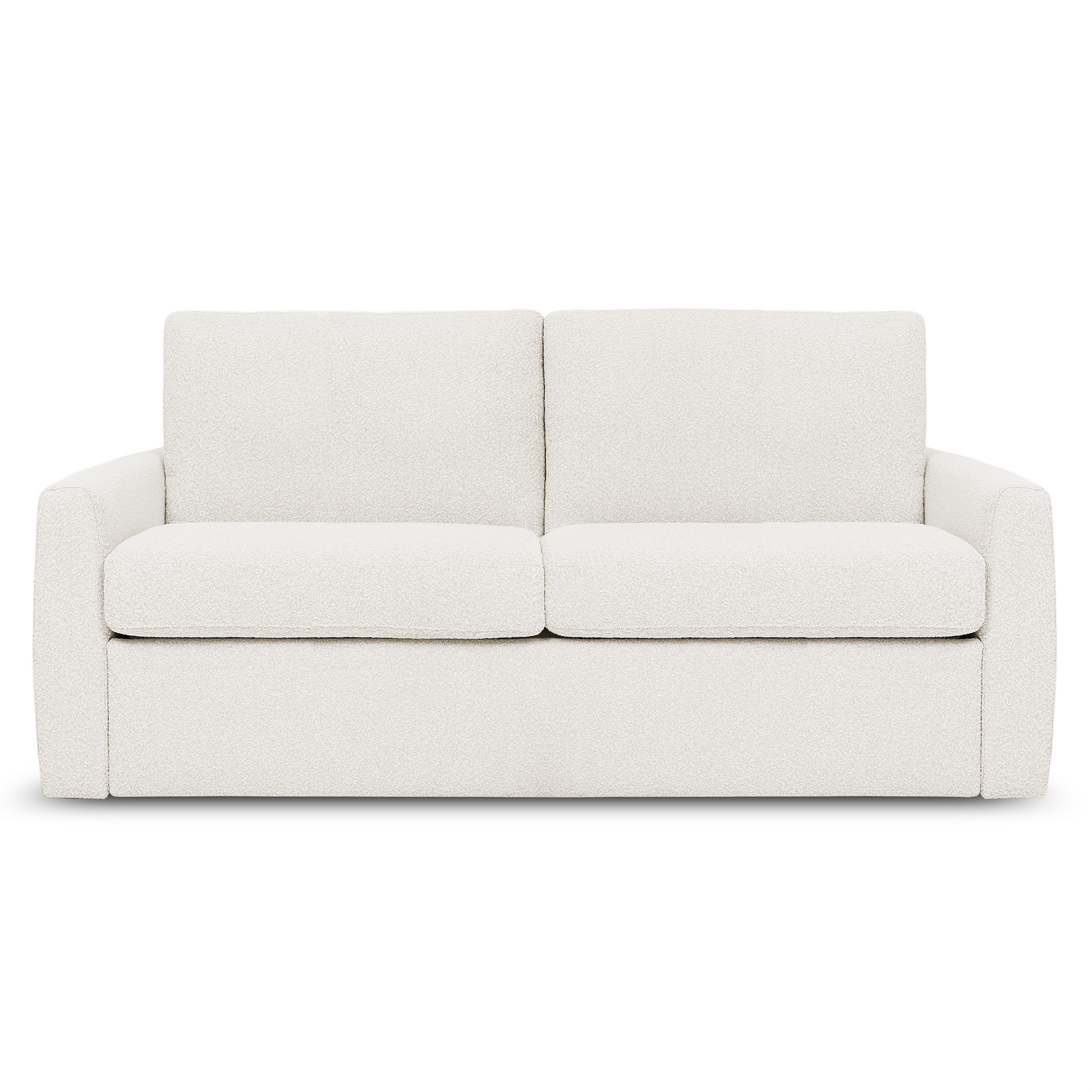

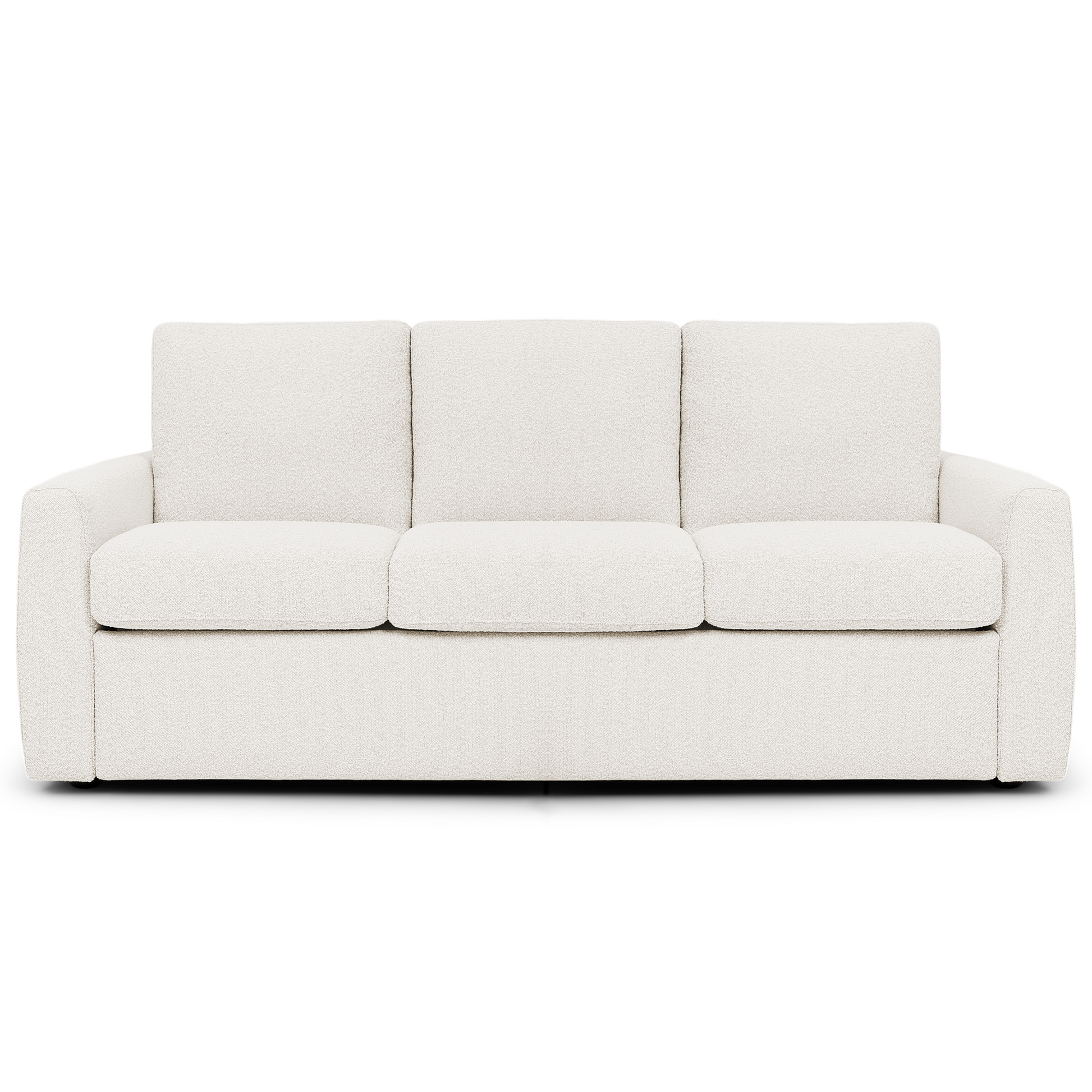

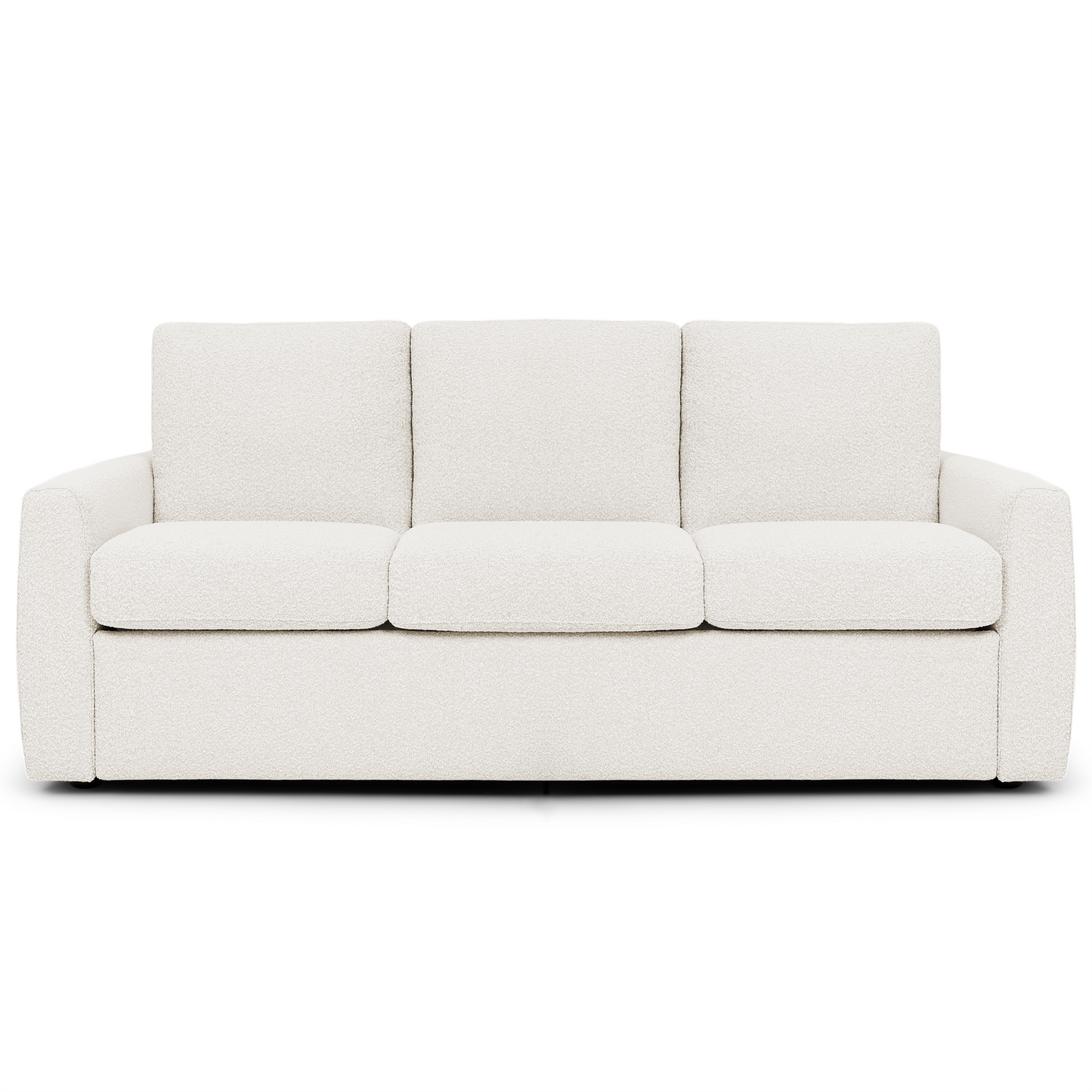

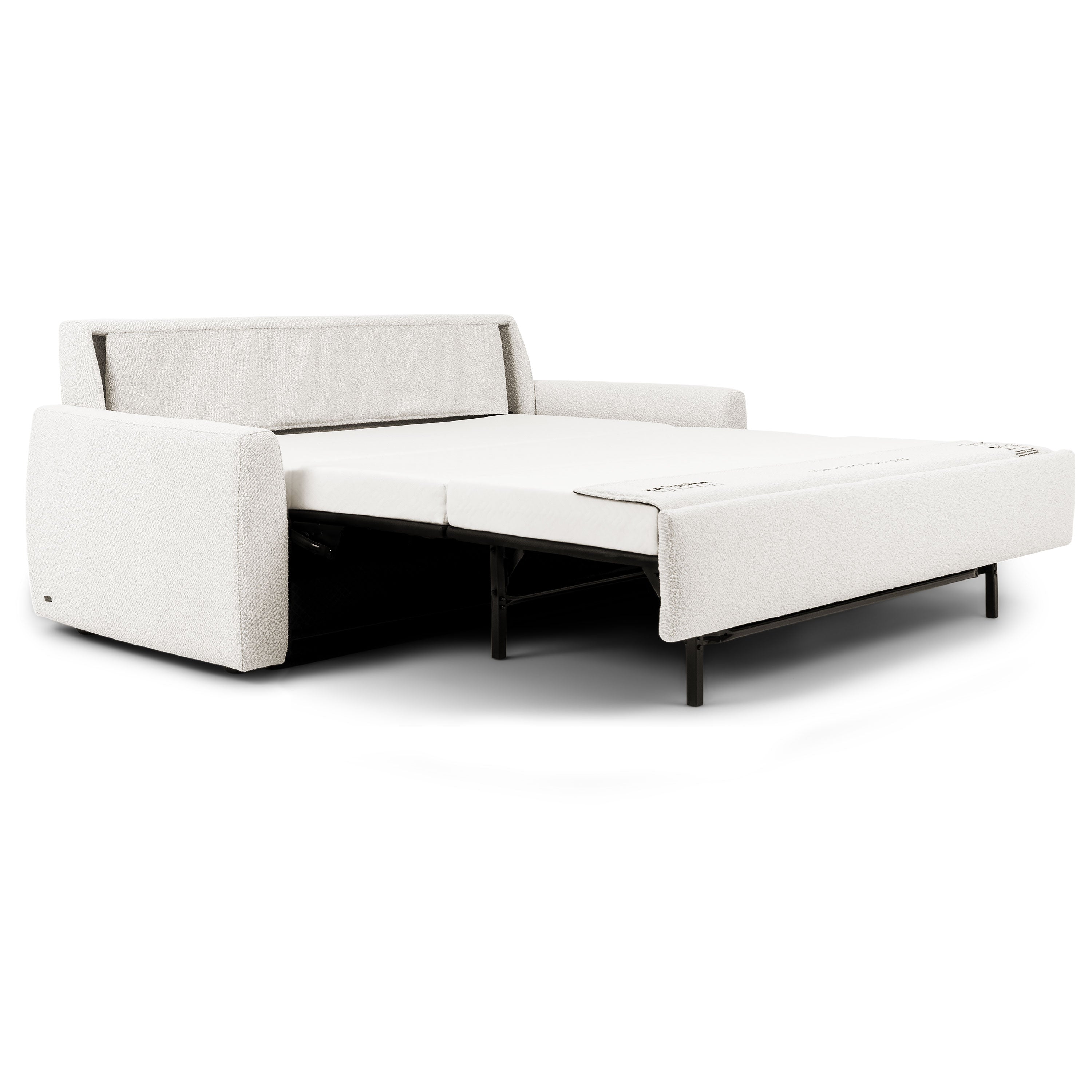

Landon’s track arm with soft curved corners adds comfort to an aesthetically pleasing form. The Langdon is at once current in its look and comfortable as can be.
We're with you Every Step of the Way
Feel free to contact us if you need help designing your sofa sleeper. We're happy to send free fabric or leather samples to your home and help you choose a style or size or sectional configuration. If you have any delivery concerns, no worries: American Leather Comfort Sleepers are designed to be fully or partially reassembled in your home as needed.
We're open seven days a week so that we're here for you every step of the way.
Receive free in-home delivery in approximately 5 weeks.
The Only Sleeper You Can Really Sleep On

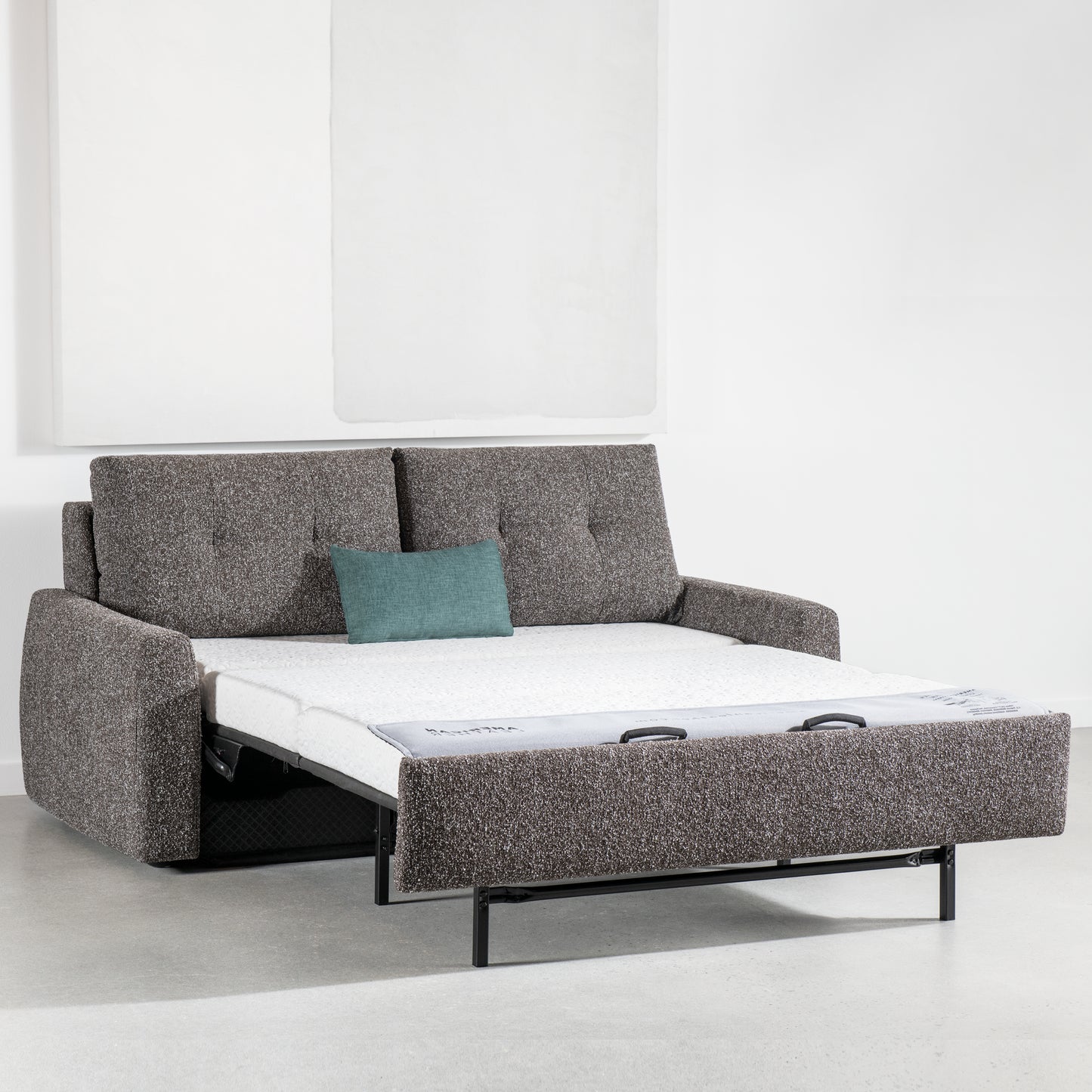

No Bars, No Springs: Instead the American Leather Comfort Sleeper has edge-to-edge comfort formed by 3 upholstered wood-framed panels with very high quality foam mattress options:
- The standard High Performance mattress has a new technology with infused carbon fiber into the foam creating a stronger, lighter and more supportive foam. The foam is antimicrobial and is covered with a Crypton water and stain resistant ticking.
- The new Cooling Gel mattress has carbon fiber infused gel foam with the addition of heat absorbing copper beads. This touch reactive foam draws heat away and has a cool to the touch ticking to enhance the cool comfort.
- The Tempur-Pedic® upgrade provides additional luxury with its patented foam technology.
- All low leg models come with a 5" thick mattress while all high leg models come only with a thinner 4" thick mattress.
American Leather Comfort Sleepers:
Comfort Sleeper Disassembly Instructions
Download Disassembly Instruction PDF:
Easy Minimum Disassembly: Removing the Front 2 Mattress Panels Only:
Recommended for all deliveries, especially large sizes from queen to king and especially when delivery includes stairs, narrow doors, passageways, or sharp turns. Most of the weight of the sleeper is in the mattress panels, so once these panels are removed, 2 people should easily be able to carry and maneuver the sleeper into most locations.
Tools: 1/2 inch wrench or cordless hand drill-driver with a 1/2 inch socket (time required: less than 2 minutes with cordless hand-drill and 1/2 inch socket)
Remove the cushions and pull the sofa sleeper mattress unit all the way open.
From under the mattress, remove the 1/2 inch bolts where the mid-panel connects to the mechanism (2 bolts on each side).
Deliver and reassemble.
When attaching the head mattress panel, the top is the thin side and the bottom is the thick side that will match up to the mid mattress panel.
Additional Disassembly for More Challenging Deliveries:
The American Leather Comfort Sleeper has been specially designed to be easily taken apart and put back together so that it can be delivered through the smallest of spaces.
Removing the back, as well as the two front mattress panels as described above, is usually sufficient to lighten the weight and allow more room to complete almost any delivery.
Tools: 1/2 inch and 7/16 inch sockets, 7/16 inch wrench, a wood block 5 inches tall. You will need 2 people for the job. (time required: 10-15 minutes with a cordless hand-drill)
Make sure the front two mattress panels are removed as described above.
Removing the back panel: Some models have two 1/2 inch bolts on each side that attach the back to the sofa arms, while other models will have only 1 on each side. After opening the mattress all the way open and removing the front two mattress panels, remove the top bolt that attaches the back to each arm.
Next, remove the remaining 1/2 inch bolt on each side that attaches the back to the sofa arms at the bottom by first flipping the sofa forward so that you can access the bottom of the sofa sleeper. If there is a black fabric dust-guard that is attached with velcro, remove it and then then remove the final bolt that attaches the back panel to each arm.
For models with backs that do not wrap around the sofa arms (referred to in the downloadable instruction sheet as ears), just lift the back off. For models that have backs that wrap around the sofa arms, you will need to slide it off by returning the sleeper back to the position with all four legs touching the ground and then sliding that back up and off. You might need to use a block that is 5 or more inches tall by placing it under the bottom of the back panel so that you can push down on the arms to force the back to slide up.
Deliver and reassemble.
Complete Disassembly: Removing the Sofa Arms
Remove the the front two mattress panels and the sofa back as desbribed above. Things get a little more complicated beyond this point the first time a full disassembly is done, so be methodical.
Tilt the sofa forward so that the bottom of the sofa is accessible and then remove all cross bar beams by removing the bolts where they attach to arms so that the brackets remain with the cross beams when removed and not with the arms. (You will need a 1/2 inch socket and a 7/16 inch socket and might also need a 7/16 inch wrench as well.)
Reassemble the sofa by following the instructions in the reverse order.
